Hoog licht: | Pvc-controleklep,CPVC-controleklep |
---|

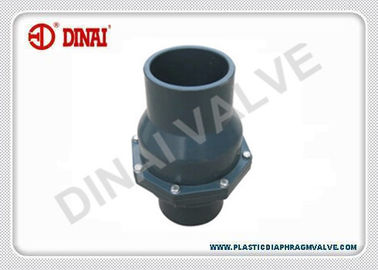

Slingeren de Plastic de Controlekleppen van UPVC/van pvc Type met Contactdoos/Draadverbinding
Materiaal: UPVC, CPVC, PP-GF,
Grootte: DN25 (1“) ~DN150 (6“)
Norm: ANSI, JIS, DIN, NPT, BSPT
Verbinding: contactdoos/Draad
Drukclassificatie: PN10
Nr. | Deelnaam | Materiaal |
1 | Lichaam | UPVC, CPVC, PP-GF |
2 | Ring | EPDM |
3 | Schijfkern | Staal |
4 | Schijf | UPVC, CPVC, PP-GF |
5 | Zegelring | EPDM |
6 | Schroef | SS304 |
7 | Dekking | UPVC, CPVC, PP-GF |
8 | Lichaam | UPVC, CPVC, PP-GF |
Grootte | DE | D | L1 | L | W |
DN25 (1“) | 32 | 46 | 27 | 107 | 75 |
DN32 (11/4“) | 40 | 56 | 34 | 130 | 110 |
DN40 (11/2“) | 50 | 66 | 38 | 147 | 120 |
DN50 (2“) | 63 | 81 | 39 | 162 | 140 |
DN65 (21/2“) | 75 | 95 | 45 | 198 | 148 |
DN80 (3“) | 90 | 110 | 55 | 233 | 170 |
DN100 (4“) | 110 | 129 | 75 | 295 | 198 |
DN150 (6“) | 160 | 182 | 119 | 428 | 281 |
